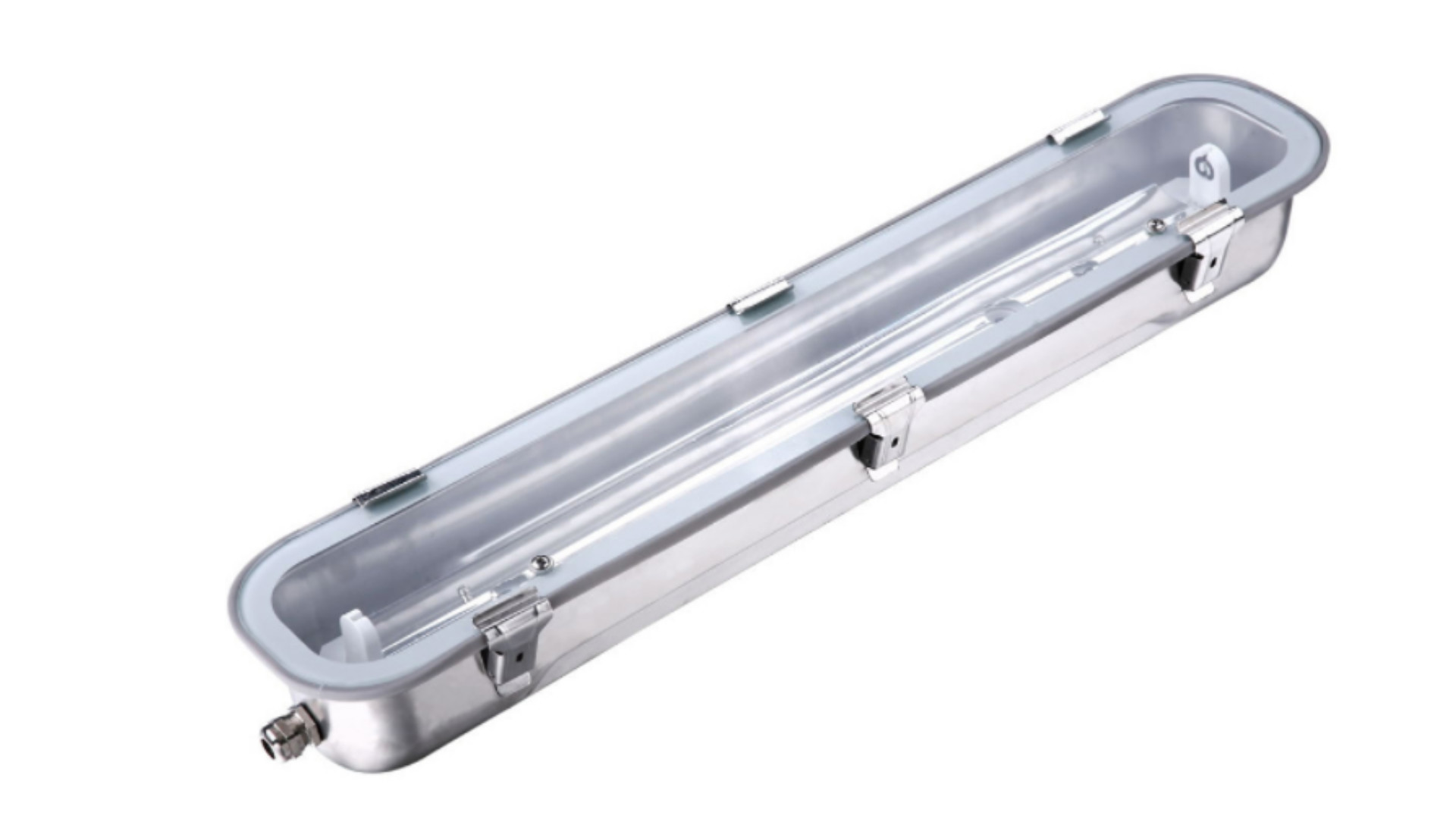

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W
1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W
1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W
Contact Now

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W

Minimum Order Quantity : 10PCS Price : 31-76.5USD/PCS
Packaging Details : L127×W24×H24cm /15pcs/CTN, G.W: 17Kg Delivery Time : 2 weeks delivery time
Payment Terms : T/T, Western Union, Paypal,, L/C Supply Ability : 20,00pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, SAA,CB Model Number: MF-LL012050-XBF

Detail Information
Size: Dia48/70/100*1200mm Material:: Alumimum + PC Cover
Power: 24W/35W/50W IP Rating :: IP67/IP68
Input Voltage :: AC 100V-277V IK Rating :: IK09/IK10
CRI: >80Ra PF: >0.9
CCT: 3000K,4000K, 5000K Electrial Protection Rating: Class I
High Light:

1200mm Waterproof Tri Proof LED Light

,

IP68 Waterproof Tri Proof LED Light

,

50W Tri Proof Fixture

Product Description

1200mm IP68 Waterproof Tri proof LED Light 24W/35W/50W Chain /Brackt hang mounted

120cm LED Tri proof light Dimensions:
1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 0

120cm LED Tri proof light Parameters:


IP67 60CM LEDTri-proof Light
Item Code :MF-LL012024-XBFMF-LL012035-XBFMF-LL012050-XBF
Power(W):24W35W50W
Size(mm) :D48*L1200D70*L1200D100*L1200
Lumen Efficiency
(Lm/w) :		130W/LM
CRI :>80
CCT3000K, 4000K,5000K
Input Voltage:AC100-277V
IP rate :IP67/IP68
Beam Angle :120 degree
IK rate :IK09-IK10
Power Factor0.9
Electriacal protection ratingClass I
Design Life 50000Hrs
Design StandardsCE/CB/SAA/Rohs/IFS/NSF



Main Parts:

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 1


Main Features:

Ingress protection: High protection grade IP67/IP68
Applicable for washing by hot water IP69K

Mechanical strength: Impact Resistance grade IK08-10 in case of deliberately sabotage.Glass parts excluded
UV resistance, anti-UV
Ammonia resistance
Corrosion resistance
High Color rendering index :CRI≥80,CRI 90 is optional


IP68 Waterproof design

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 2


IP69K

high protection rating IP69K and resistance against cleaning agents. The high protection rating of the luminaires allows cleaningat high pressure up to 100 bar and with up to 80 °C hot water and a variety of cleaning agents, alongside good chemical resistance.


1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 3

> Diagram of protection rating testing IP 69K

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 4
> High-pressure cleaning of housing cover with 100 bar


Applications:

Car washes; car Parks ; Meat processing ; Poultry plants/Farm ; Food processing yard; Low temperature storage room ; Department store.......

1200mm IP68 Waterproof Tri Proof LED Light Chain Bracket Mounted 50W 5



Tri-Proof Lights are a durable lighting solution that can replace traditional linear fluorescent luminaires. Tri-Proof Lights are designed for a variety of applications requiring, dust-, moisture- and impact-resistance.

Tag:

LED Tri-proof Light

Tri-Proof Light

Vapor Tight Light
