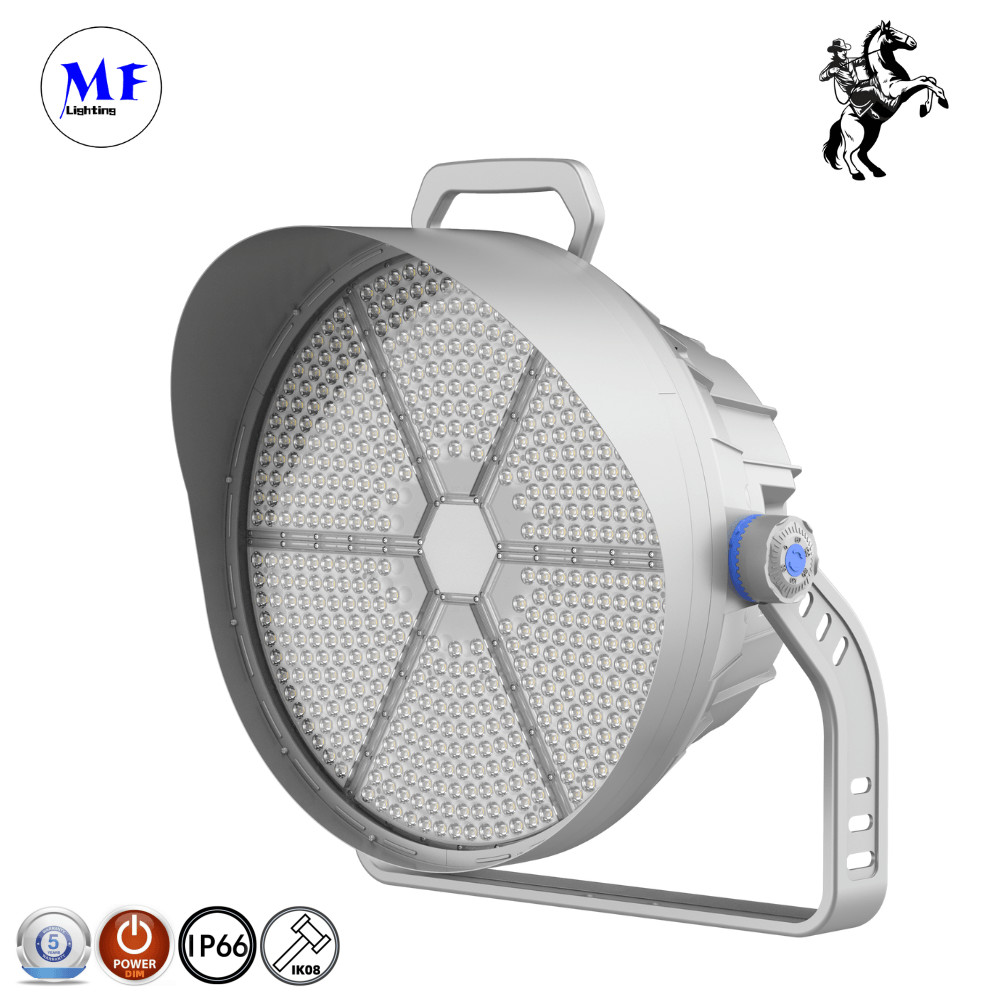

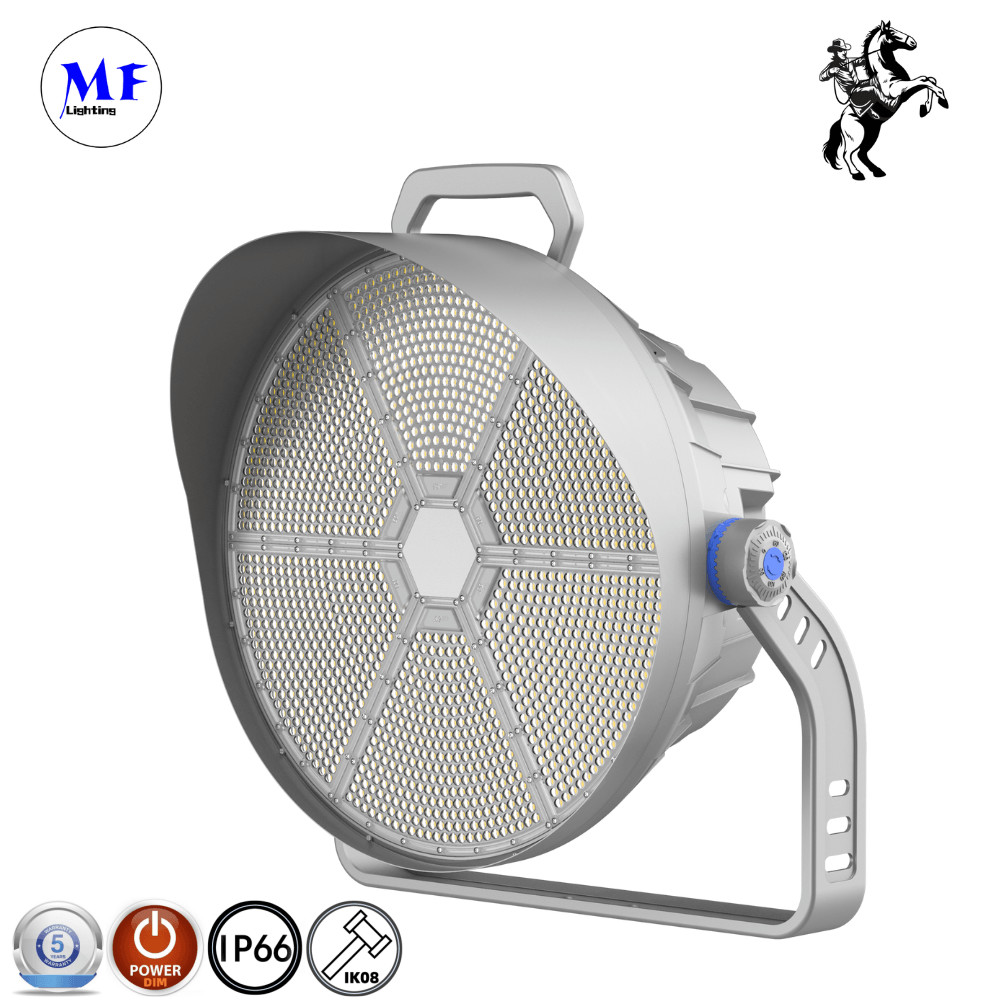

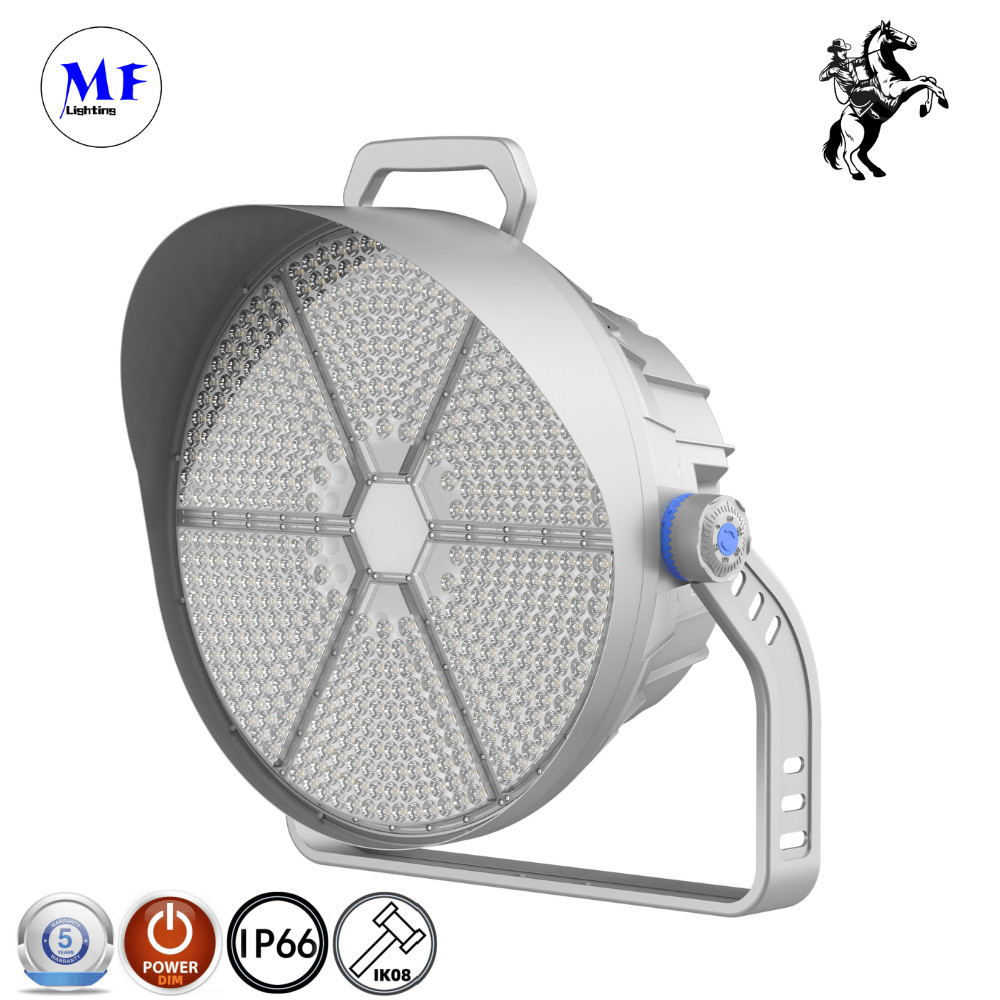

1200W 1000W 800W 600W 400W LED Flood Light LED High Mast IP66 High Power Floodlights For Race Course Golf Sport Field

Product Description

1200W 1000W 800W 600W 400W LED Flood Light LED High Mast IP66 High Power Floodlights for Race Course Golf Sport Field

Specifications

Model No.	MF-QCD-C400w	MF-QCD-C500w	MF-QCD-C600w	MF-QCD-C800w	MF-QCD-C1000w	MF-QCD-C1200W
Input Voltage	AC100-277 50/60Hz
Output Voltage	DC42v
Power	400w	500w	600w	800w	1000w	1200w
Qty of LED	864PCS*3030	864PCS*3030	864PCS*3030	1632PCS*3030	1632PCS*3030	1632PCS*3030
PF	>0.95
LED Brand	Lu-mileds
Luminous Flux	60000lm±5%	75000lm±5%	90000lm±5%	120000lm±5%	150000Im±5%	180000lm±5%
CRI	Ra>70,80,90
CCT	3000-6500K
Beam Angle	10/15/25/45/60/90
Driver Brand	MW/SOSEN
THD	<10%
lK Ratng	IK08
IP Rating	IP66
Life Span	50000Hrs
Size	522*509*389mm	522*509*389mm	522*509*389mm	681*660*497mm	681*660*497mm	681*660*497mm
NW	16.90kg	17.40kg	17.90kg	33.00kg	34.00kg	35.00kg
GW	18.90kg	19.40kg	19.90kg	37.00kg	38.00kg	39.00kg
Certification	U-L/ETL/DLC/ruv/CB/ENEC/CE/SAA/FCC/RoHS

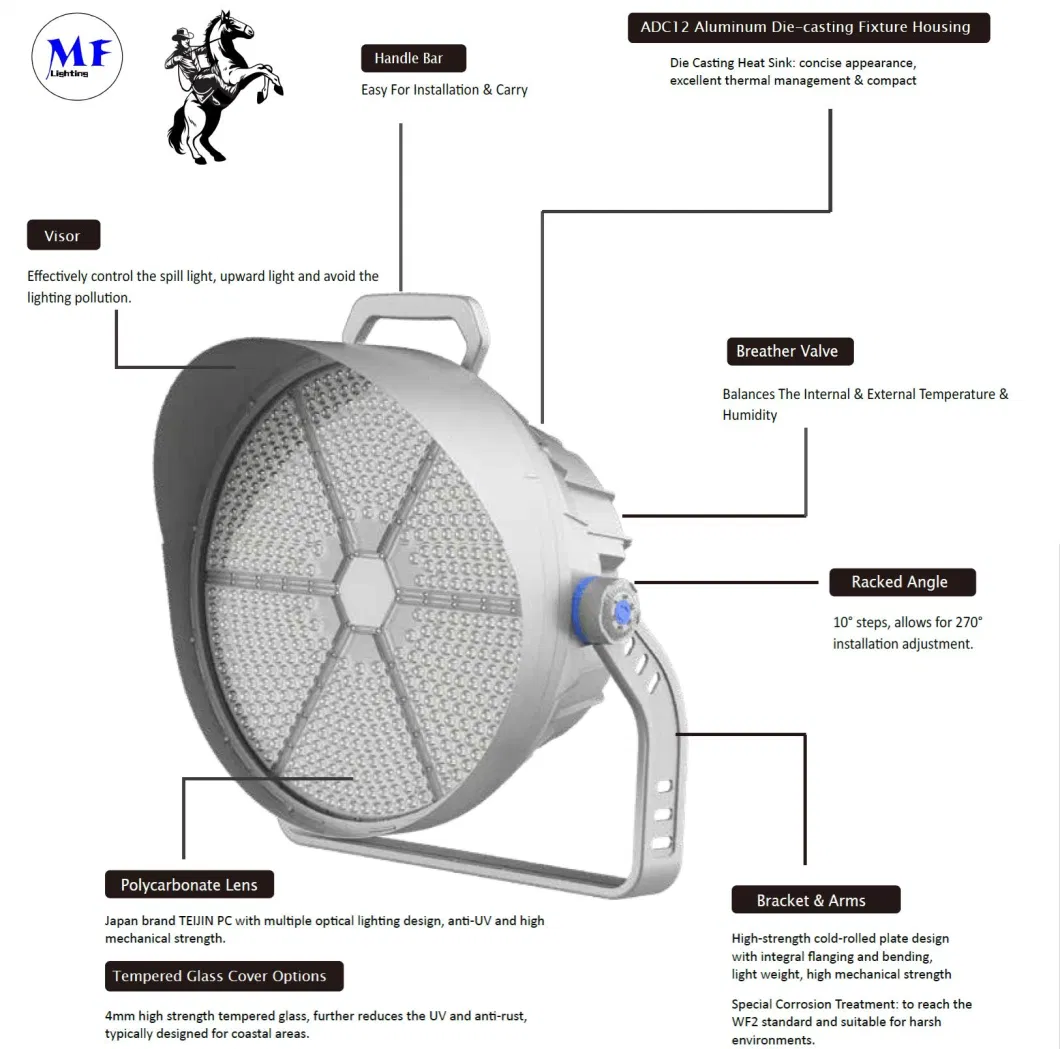

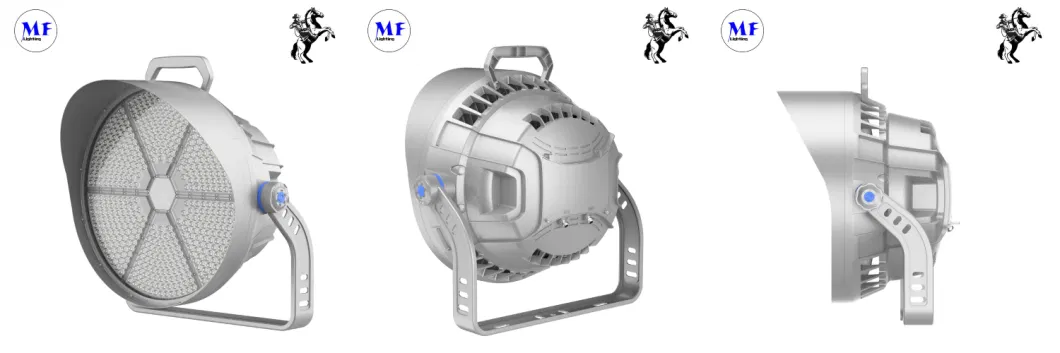

Detailed Photos

Handle Bar: Easy For Installation & Carry

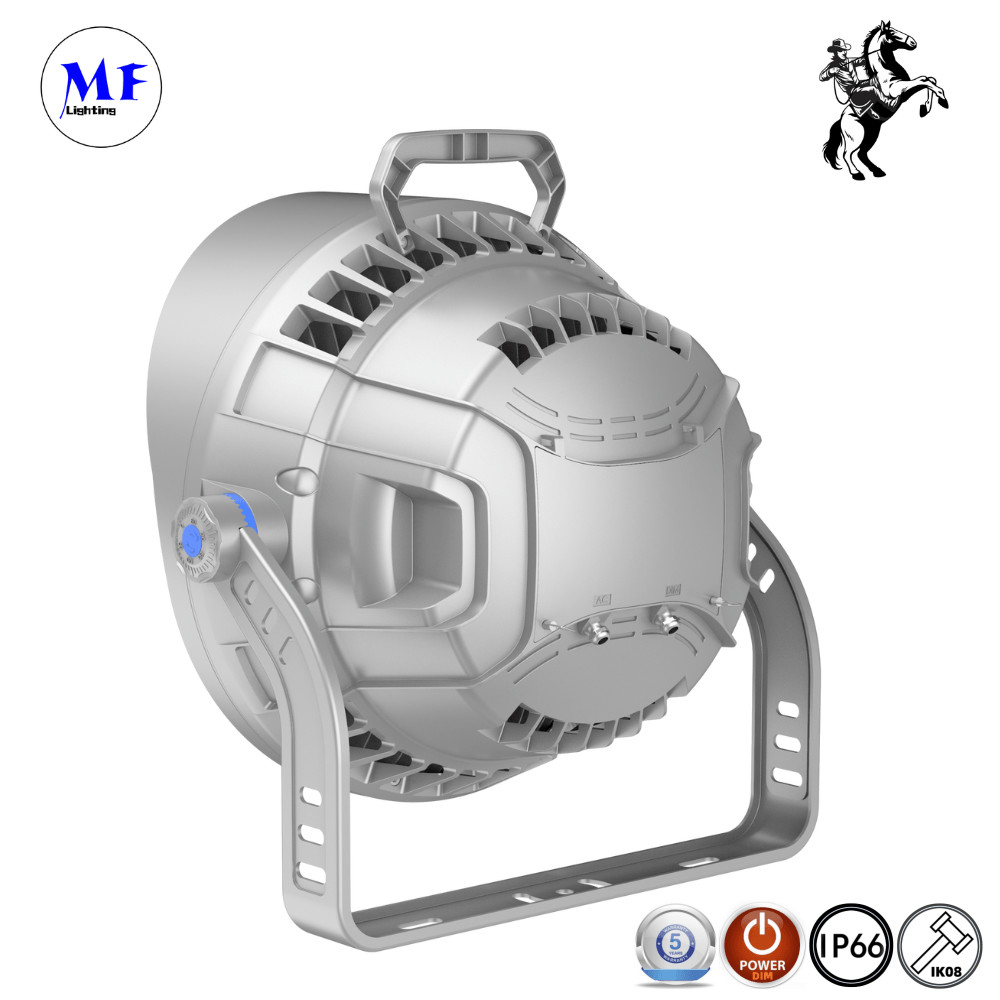

ADC12 Aluminum Die-casting Fixture Housing Die Casting Heat Sink: concise appearance excellent thermal management & compact

Visor: Effectively control the spill light, upward light and avoid thelighting pollution.

Breather Valve: Balances The Internal & External Temperature &Humidity

Racked Angle: 10° steps, allows for 270 installation adjustment.

Polycarbonate Lens: Japan brand TElJIN PC with multiple optical lighting design, anti-UV and highmechanical strength.

Tempered Glass Cover Options: 4mm high strength tempered glass, further reduces the UV and anti-rust, typically designed for coastal areas.

Bracket & Arms:
High-strength cold-rolled plate desigrwith integral flanging and bending,light weight, high mechanical strength
Special Corrosion Treatment: to reach theWF2 standard and suitable for harsh environments

Competitive Advantage

chips, high brightness, low light decay & long life time

International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)

Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.

Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 10°/15°/25°/45°/60°/90°

Bracket Installation, operation temperature: -35C- +50C

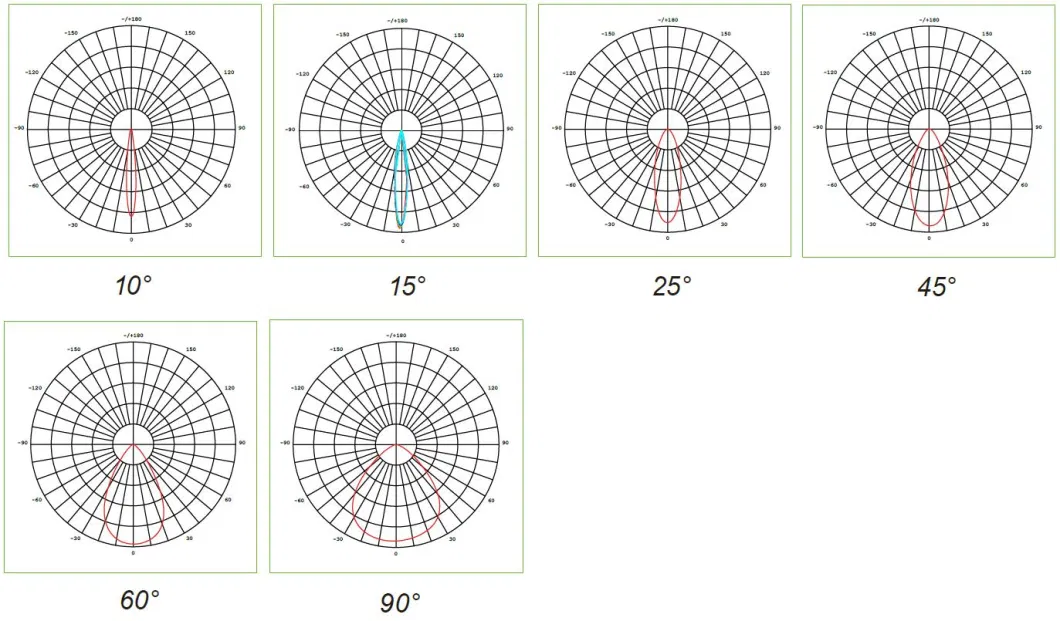

Photometry

Dimension

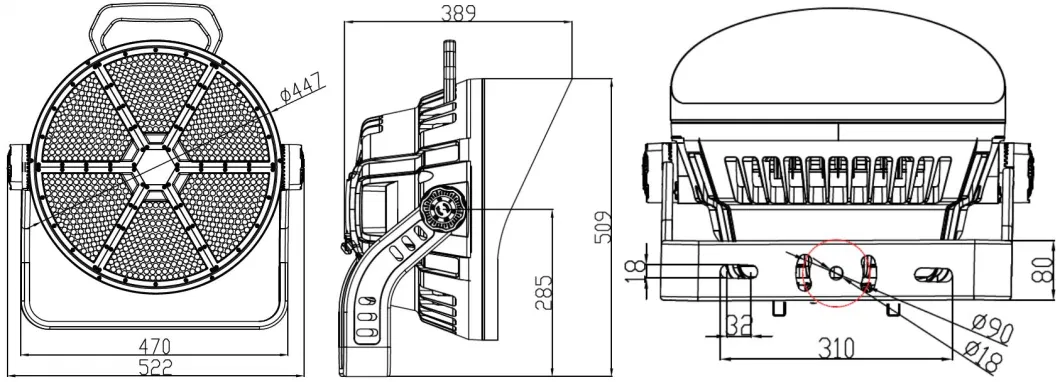

MF-QCD-C400W/500W/600W

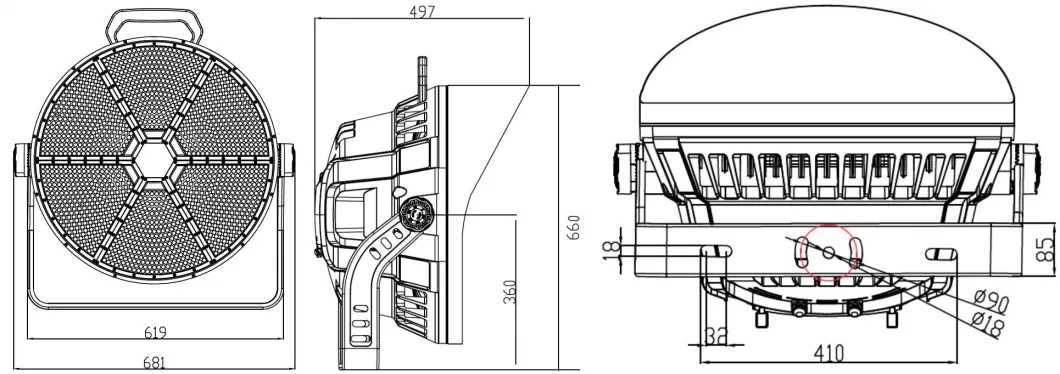

MF-QCD-C800W/1000W/1200W

Installation Instructions

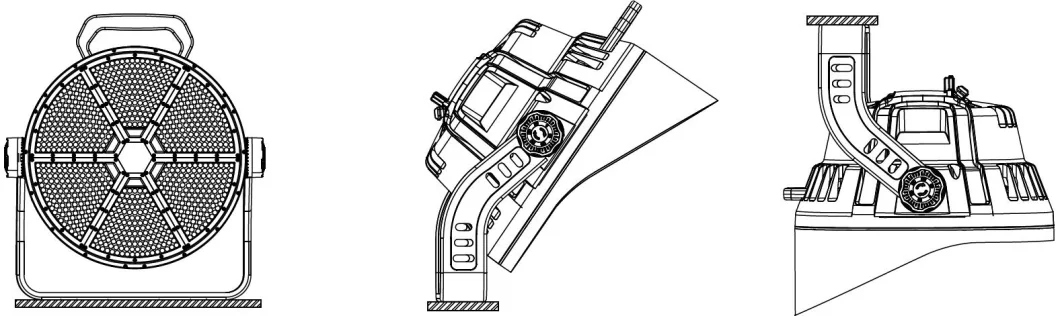

Vertical Mounting Vertical Mounting Hanging Mounting

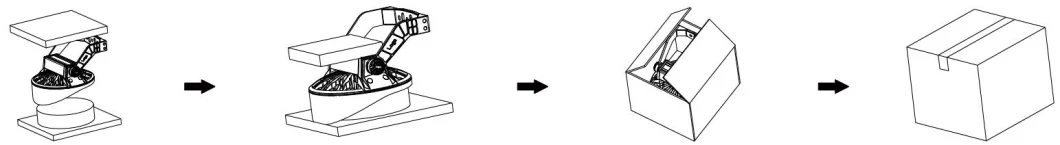

Packaging & Shipping

Applications

LED high mast lights are extensively used in various applications that require powerful and efficient lighting solutions. Here is a paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor areas that demand high-intensity illumination. These lights are commonly used in sports stadiums, providing exceptional brightness and uniform lighting for sporting events and nighttime matches. They are also utilized in airports and transportation hubs to illuminate runways, taxiways, and apron areas, ensuring safe and efficient operations during low-light conditions. Additionally, LED high mast lights are employed in industrial facilities, warehouses, and logistics centers, where they provide bright and reliable lighting for loading docks, storage yards, and parking areas, enhancing safety and productivity. Furthermore, these lights are commonly used in seaports to illuminate container yards, docking areas, and cranes, enabling efficient cargo handling and enhancing overall security. Their applications also extend to large parking lots, highways, and intersections, where they provide excellent visibility, reducing the risk of accidents and ensuring smooth traffic flow. Overall, LED high mast lights serve as indispensable lighting solutions for a wide range of outdoor environments that require powerful and energy-efficient illumination.

Packing and Production:

About us:

Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
