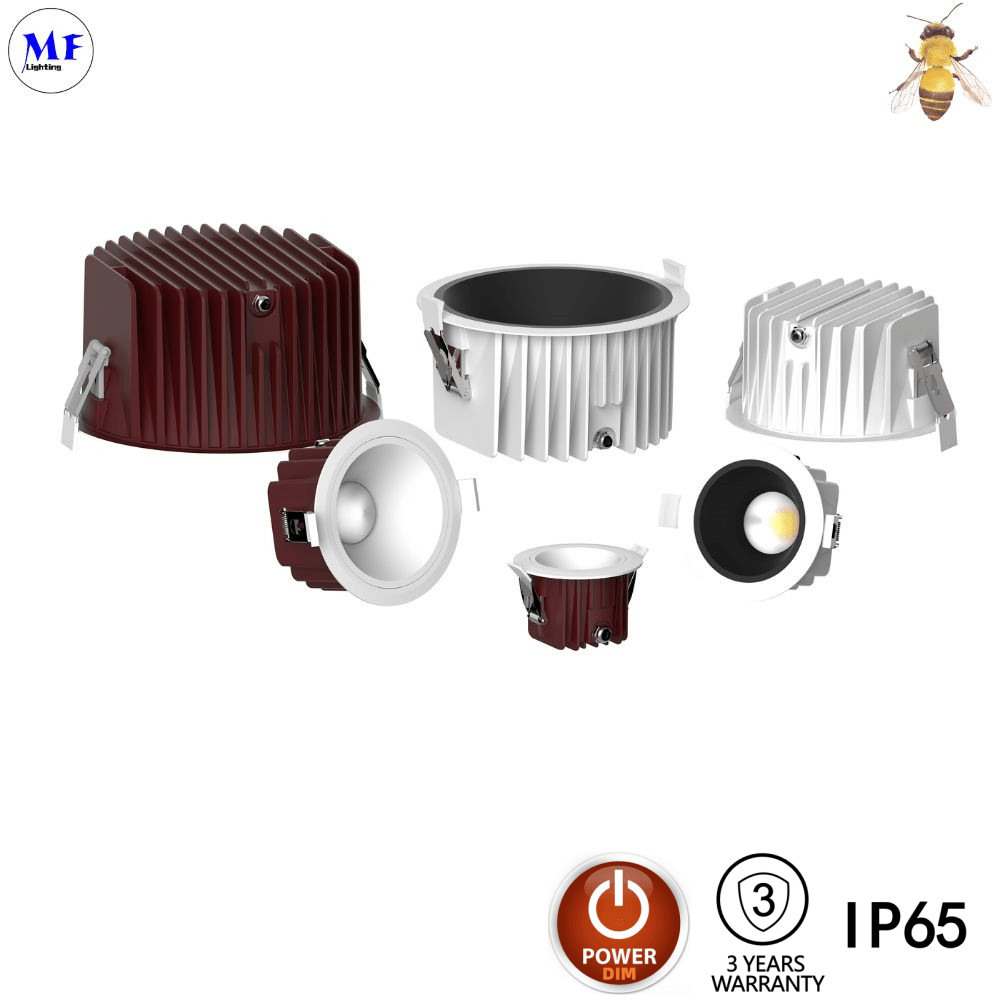

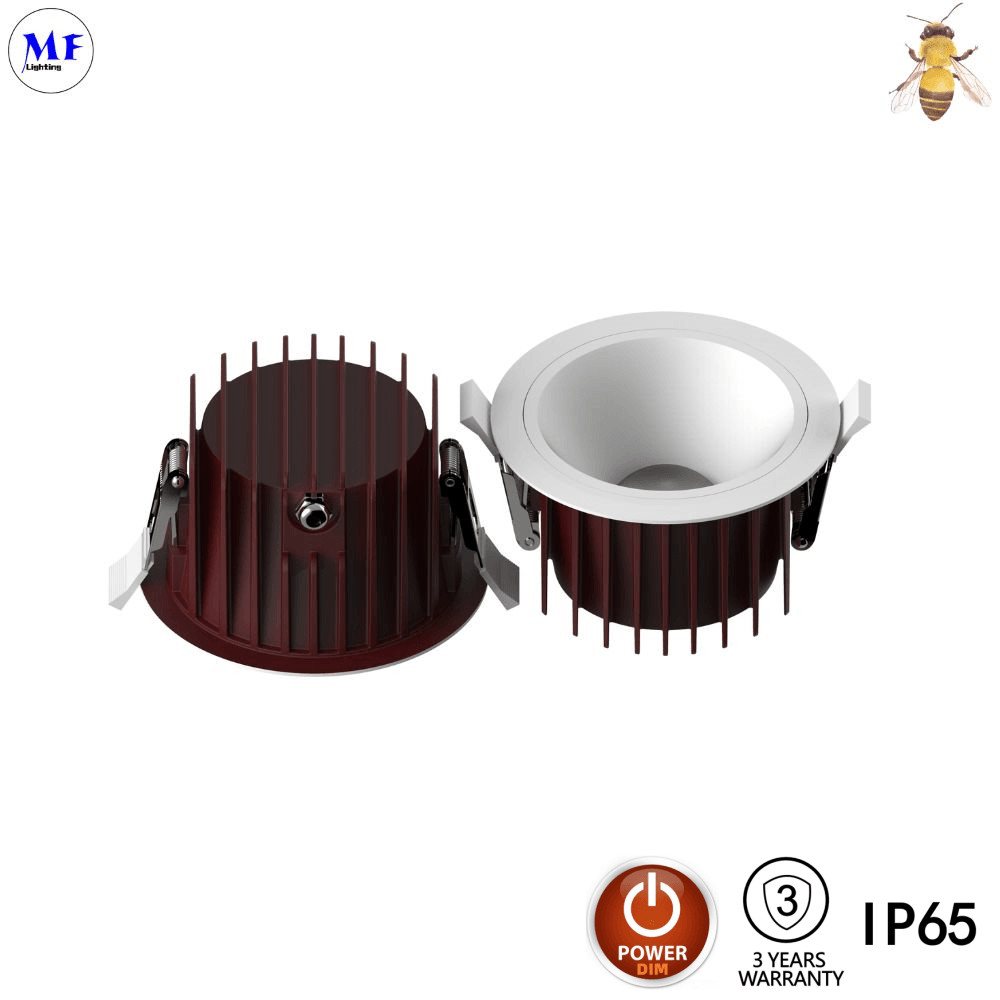

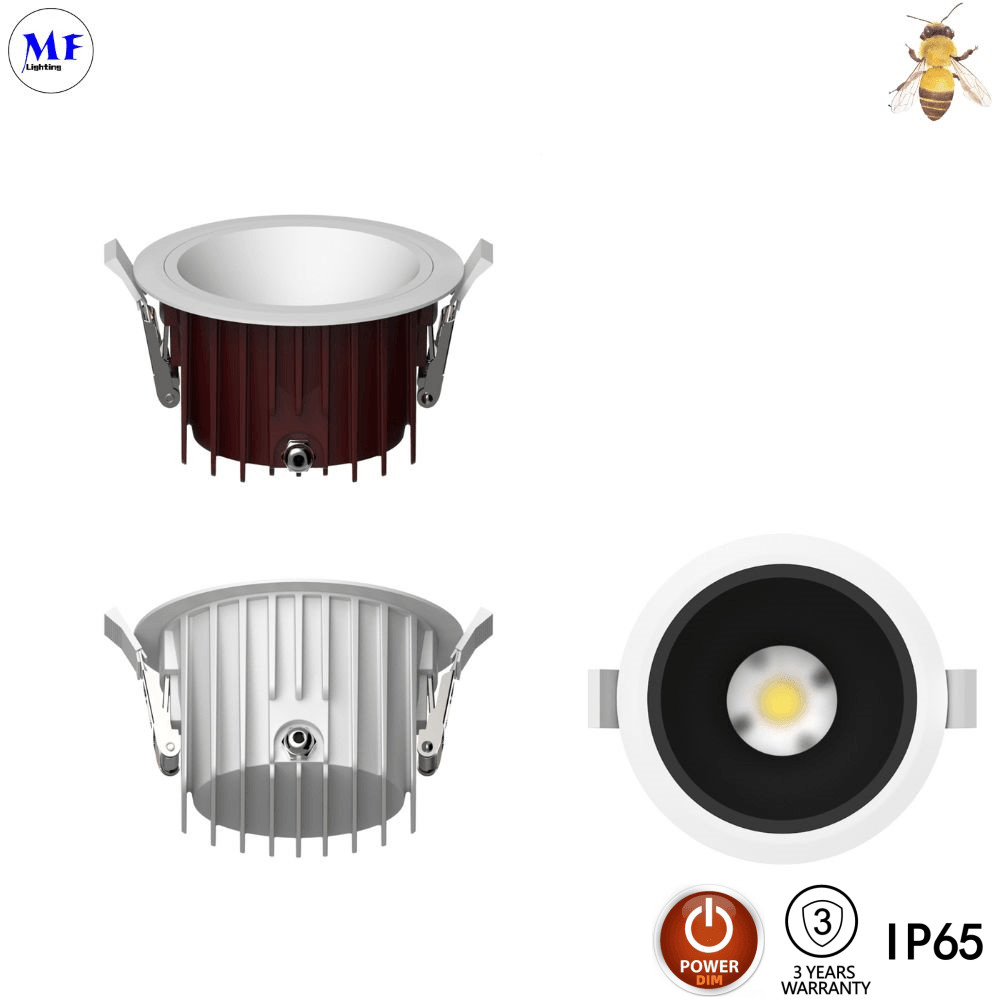

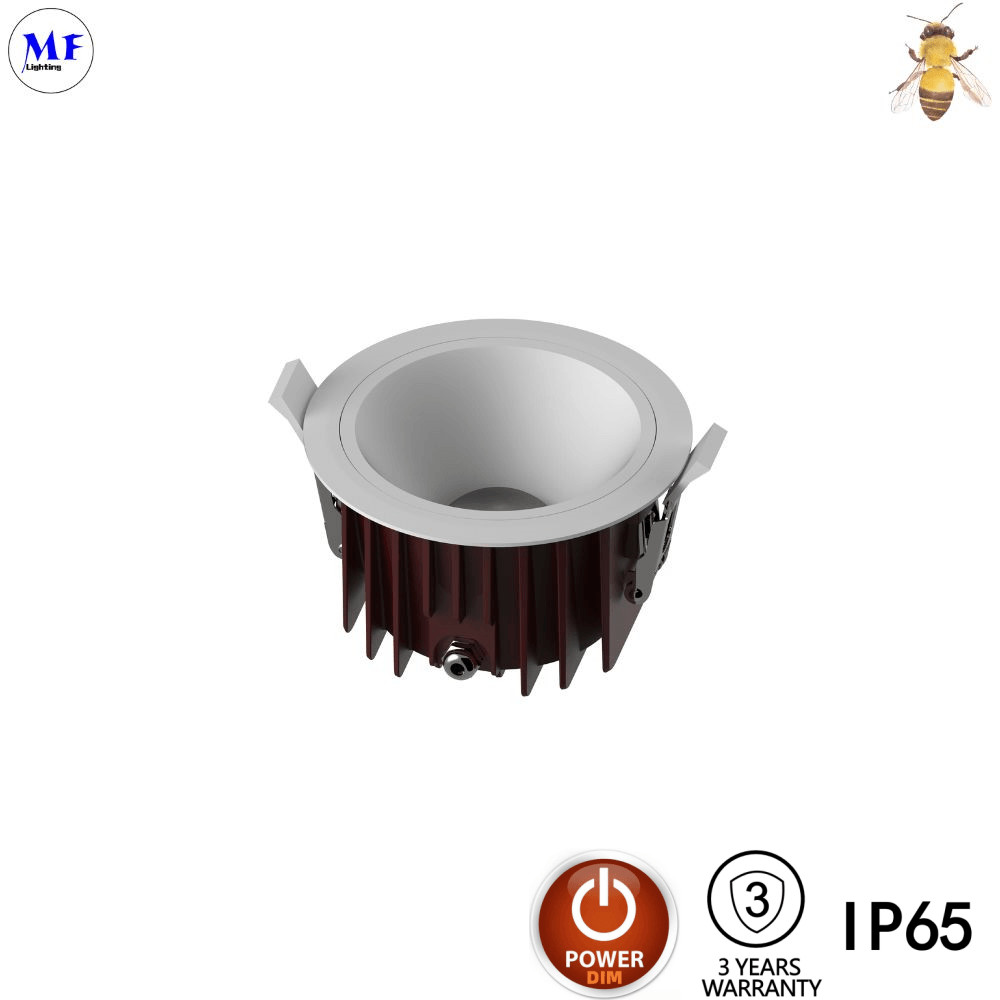

![Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor](/images/load_icon.gif)
Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA,TUV,CB,ETL,UL | Model Number: | MF-TH185-15W |
Detail Information |
|||
Beam Angle: | 36°/60° | Input Voltage: | AC 100-240V |
---|---|---|---|
Power: | 7W/10W/15W/20W/25W/30W/50W/40W/60W | CCT: | 2700K,3000K, 4000K, 5000K |
Material: | Aluminum+PC | Installation: | Recessed |
Warranty: | 3 Years | IP Rate: | IP65 |
Mounting Location: | Ceiling | Lifespan L70/B50 At 25°C: | 30000 H |
Luminous Efficacy: | 100 Lm/W/Higher | Nominal Current: | 350.000 Ma |
Protection Class: | Class I | Dimmable: | 1~10V Dim/Dali As Options |
Life Span: | 7 Years At 12 Hours/Day | Storage Temperature: | -40°C~+60°C |
Operating Temperature: | -40°C~+40°C | ||
High Light: | 15W COB LED Down Light,Bathroom Recessed Ceiling LED Down Light,5 Inch LED Down Light |
Product Description
Nominal wattage |
10W 15W 20W 30W 40W 60W
|
|||
Nominal voltage | 100.…240 v | |||
Mains frequency | 50…60 Hz | |||
Nominal current | 350.000 mA | |||
Power factor λ | 0.90 | |||
Protection class | II | |||
Operating mode | Electronic control gear (ECG) |
Luminous flux |
10W/1000lm 15W/1200lm 20W/2000lm 30W/3000lm 40W/4000lm 60W/6000lm
|
|||
Luminous efficacy | 100 lm/W | |||
Color temperature | 3000 K 4500K 6000 K | |||
Light color (designation) | Warm White | |||
Color rendering index Ra | ≥80 | |||
Beam angle |
60°
|
Product color(Ring) | White |
Housing color | Multiple Color Optional |
Body material | Aluminum |
Mercury content | 0.0 mg |
Ambient temperature range | -20…+40 ºC |
Type of connection | Terminal,2-pin |
Type of protection | IP65 |
Dimmable | Yes |
Mounting type | Recessed |
Mounting location | Ceiling |
Application environment | Indoor/Outdoor |
Mounting diameter |
Refer to Dimensions & Weight
|
LED module replaceable | Not replaceable |
Lifespan L70/B50 at 25ºC | 30000 hr |
Number of switching cycle | 15000 |
Outlook Size(MM) |
15W, L110xW110xH59mm;
20W, L127xW127xH70mm;
30W, L165xW165xH80mm;
50W, L220xW220xH90mm;
|
Cutting Size(MM) |
15W, L90xW90mm;
20W, L110xW110mm;
30W, L145xW145mm;
50W, L200xW200mm;
|
Export Carton Size | Refer to specified data sheet |
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.
Residential lighting: LED down lights are commonly used in homes for general lighting purposes, such as in living rooms, bedrooms, and kitchens.
Commercial lighting: LED down lights are often used in commercial spaces, such as offices, retail stores, restaurants, and hotels, for general lighting and accent lighting.
Hospitality lighting: LED down lights are commonly used in the hospitality industry, such as in lobbies, hallways, and conference rooms of hotels and resorts.
Healthcare lighting: LED down lights are used in healthcare facilities, such as hospitals, clinics, and dental offices, for general lighting and examination lighting.
Educational lighting: LED down lights are used in educational facilities such as schools, universities, and libraries, for general lighting and task lighting.
Industrial lighting: LED down lights can be used in industrial settings such as factories, warehouses, and workshops, for general lighting and task lighting.
Art and museum lighting: LED down lights are often used in art galleries and museums to highlight and accentuate artwork, sculptures, and exhibits.
Entertainment lighting: LED down lights are used in entertainment venues such as theaters and cinemas, for general lighting and accent lighting.
FAQ:
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience.
Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows:
LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
LED garden spot/spike lights
LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal, and Alipay. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF.
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
